15KW 22KW Frequency Inverter Single Phase Input Three Phase Output
Instruction of frequency inverter
Inverters in the ST310 series are high-performance v/f control
inverters, primarily suited for the use of three-phase asynchronous
motors. The power control device changes the motor's working power
supply's frequency, voltage, and current. It is characteristic of
strong overload capacity, high rotation speed at high frequency,
stable acceleration, deceleration, etc. In addition to stable
performance, the ST310 series offers multiple protection features.
The products are widely used in many fields due to their wide
voltage design of 220v-480v in accordance with international
voltage requirements, including in the United States, Europe, Asia,
South America, and other countries.
Software design of frequency inverter
1. A V/F control mode is being developed (open loop vector control
and closed-loop vector control are being developed).
2. Maximum control frequency: 3000Hz
3. A wave-by-wave current limiting algorithm protects hardware
protection components from the impact of loading current.
4. Overload capacity: Conventional overload capacity: 130%, 150%
60S, 180% 10S, and 200% 0.5S
5. Tracking speed: small impact on currents and voltages, accurate
tracking speed
6. In a frequency converter fault process, a four-time fault record
can record current, voltage, and temperature, facilitating fault
analysis.
7. A panel can store a group of parameters, making it convenient to
debug multiple devices at the same time.
8. The carrier frequency is 0.7khz~16khz. The carrier frequency can
be automatically adjusted with frequency conversion temperature and
operating frequency to ensure reliable operation at low
temperatures.
9. With a temperature detection module, overheat alarm temperature
setting, and default fan following temperature flexible starts, the
service life of the fan is greatly extended.
10. A maximum of 16 speeds can be controlled by the multi-speed
controller.
Product details of frequency inverter
| Power Range | 15kw/18.5kw/22kw |
| Mounting dimension(mm) | 192(W)*397(H)*199(D)*150(W1)*379(H1)*7(molding hold) |
| Gross Weight | 12kg |
| Packing | carton packing/wood packing |
| Shipping Mark | To be discussed |

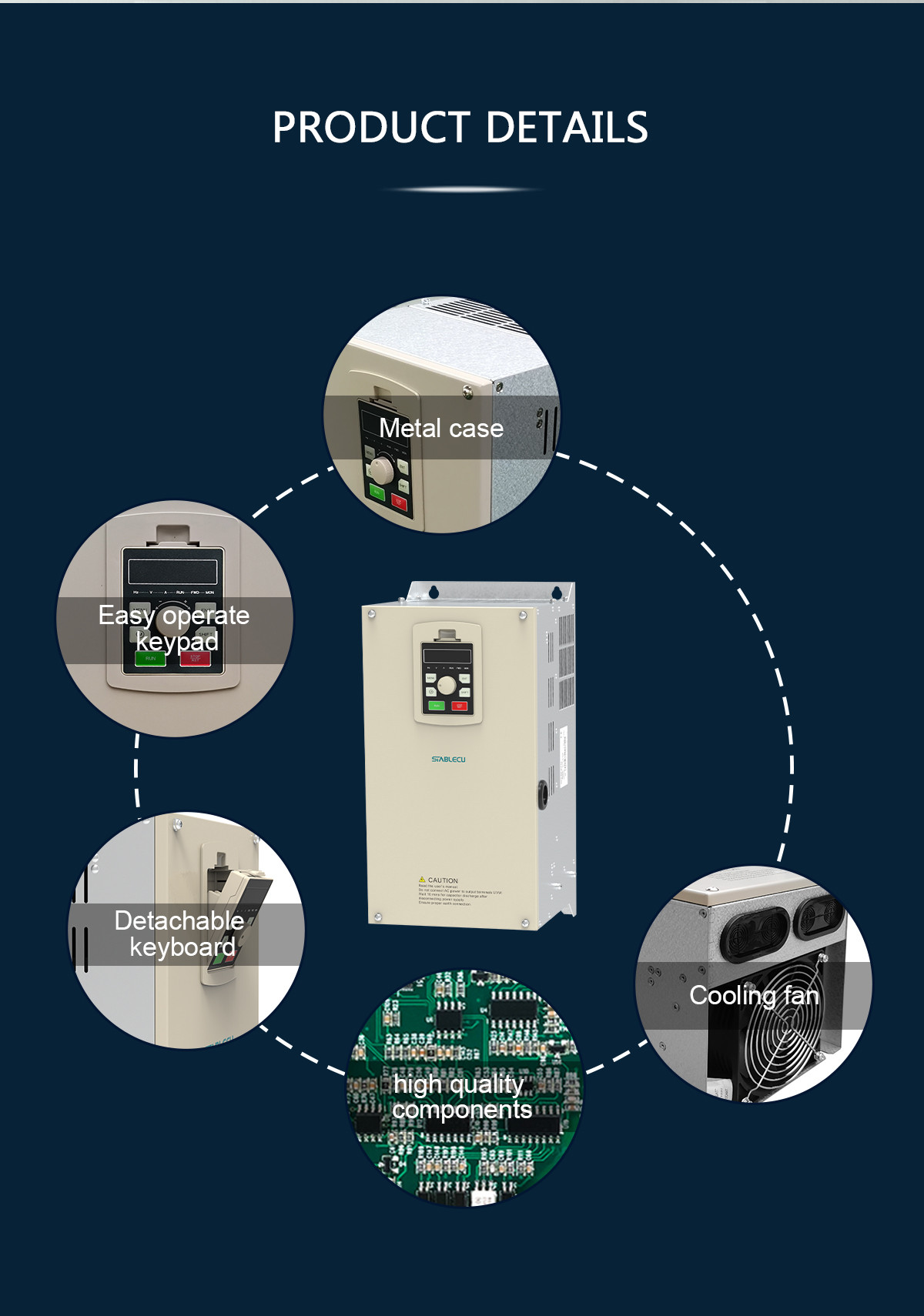

Details image of frequency inverter
Application for frequency inverter
Our frequency inverters are widely used for industry, such as CNC
machine tools, winding machines, conveyor belt, punching machines,
wire drawing machines, motors, draught fan, horizontal knitting
machines, ball grinding mill, etc.
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009,
sell to Domestic Market(100.00%). There are a total about 201-300
people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final
Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And
Stepper Motor, Frequency Converter, Automation System Development
And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements.
Please send us an inquiry, your inquiry will be replied within 12
hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express
Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card,
PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
