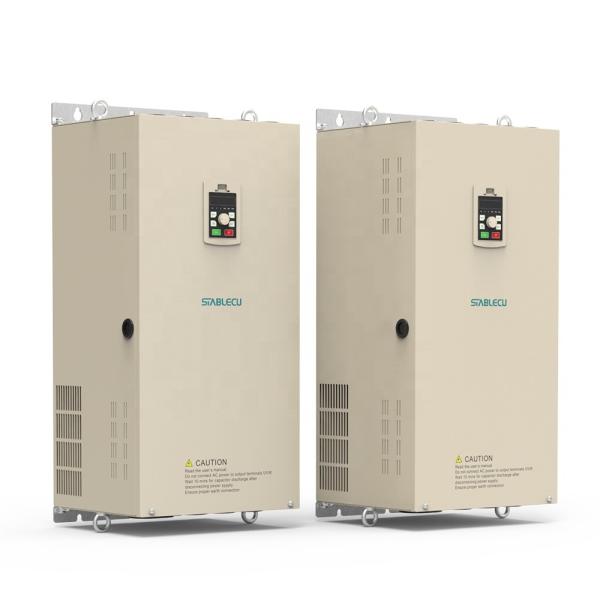

90KW 380V AC Drive Three Phase Output High Performance Frequency Inverter

Quick details of frequency converter

Rated Power: 90kw

Rated Voltage: Three-phase 380v

Rated Frequency: 50hz/60hz

Product Size: 338mm*750mm*290mm

Installation Size: 230mm*730mm

Weight: 40kg

Input: 50/60hz 160A

Output:0-300hz 176A

Product hardware features for frequency inverter

1. All-round machine protection
Overcurrent and Overvoltage Protection
Short circuit protection to ground
IGBT shoot-through protection
Current detection abnormality protection
Protection functions such as relay pull-in abnormality.

2. Perfect power protection function
Short circuit and overload protection of control board terminal 24V, 10V, analog output AO1/AO2 power supply.

3. Rich control board ports
Two analog inputs (AI1, AI2), current (0-20mA), voltage (0-10V)
Two analog outputs (AO1, AO2), current (0-20mA), voltage (0-10V)
Six digital inputs (X1-X6), three digital outputs (Y1, RA-RB-RC, TA-TC)
High-speed pulse input DI, high-speed pulse output DO
Communication port 485

Software design advantages for frequency inverter

Different control modes can make the inverter suitable for various types of motors and machinery and can obtain different static and dynamic performances.

ST310 inverter control modes include:
– V/F mode
0: Straight line V/F
1: Multi-band V/F
2: 1.2, 1.4, 1.6, 1.8, 2.0 powers
3: V/F separation method

Product Details of frequency inverter

Application for frequency converter

Widely used in factory sites, hotel complexes, central air-conditioning systems, equipment, shopping escalator, breeding farm, sewage treatment, fire hospital transportation, machine tool equipment, and automation equipment.
