    Small Volume IP20 Synchronous Inverter , Three Phase Miniature VFD Multipurpose

    Ask Lasest Price
    Brand Name : STABLECU
    Model Number : ST310 15KW-22KW
    Certification : CE ROSH
    • Product Details
    • Company Profile

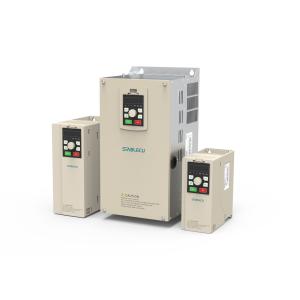

    Small Volume IP20 Synchronous Inverter , Three Phase Miniature VFD Multipurpose

    15KW-22KW 380V Three-Phase AC Frequency Inverter Small Volume High-Performance
    Product features of variable frequency drive
    1. Adopt TI's latest high-speed DSP chip and all components from well-known brands.
    2. The volume and weight of new generation inverters is lighter, saving installation space.
    3. More than three protection functions: short-circuit/over-current/over-voltage and wave-by-wave current limiting.
    4. Independent cooling air duct design.
    5. The inverter adopts a new software speed tracking algorithm, which has low impact on current and voltage
    when tracking and accurate tracking speed.
    6. Maximum frequency of 3000 Hz, can be used in one machine. They have been successfully applied to chemical,
    metallurgy, machine tools, woodworking, textile and many other industries.
    Specification of variable frequency drive
    itemvalue
    Place of OriginChina
    Guangdong
    Brand NameSTABLECU
    Model NumberST310-4T15GB
    Warranty18 MONTHS
    TypeAC/DC inverter
    CertificationCE
    CustomizedYES
    Rated Power15 KW
    Nominal Voltage380 V
    power phase numberThree phase
    Input frequency50/60 hz
    Output frequency0-3000 hz
    Overload capacity150% for 60s, 200% for 0.5s
    Protectionshort-circuit,over-current,over-voltage
    Horsepower20 HP
    Mounting dimension(W*H*D)192*397*199(mm)
    Gross weight12 KG (Estimated)
    Plastic shellABS+PC
    Machine caseAluminum coated zinc plate, cold rolled plate powder spray
    ColorGray
    More images of variable frequency drive
