    AC Drive 18.5KW Adjustable Frequency Converter For Three Phase Pump

    Ask Lasest Price
    Brand Name : STABLECU
    Model Number : ST310-4T18.5GB
    Certification : CE
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability :
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    AC Drive 18.5KW Adjustable Frequency Converter For Three Phase Pump

    18.5KW Adjustable Frequency Inverter AC Drive Converter For Three Phase Pump

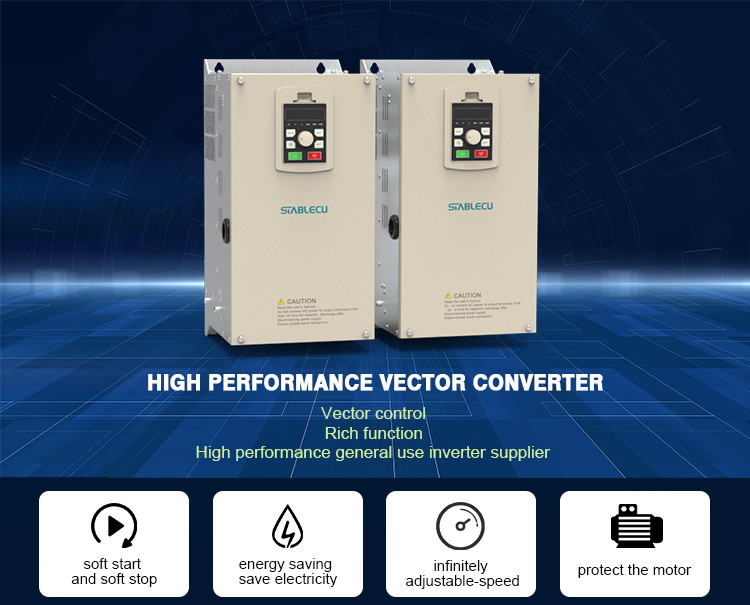

    Description of frequency converter

    ST310 adopts DSP control system to realize vector control and effectively suppress low-frequency oscillation.
    Abundant terminals make the application more flexible. It is mainly used for fans and pump loads.
    It has higher requirements for speed control accuracy, torque response speed, and low-frequency output.

    Specification of frequency converter

    Output current39A
    Input current44A
    Adaptation motor18.5KW
    Braking resistor power5KW
    Mounting dimension192*199*397MM
    Weight12KG
    Packing Size271*260*424MM

    Other series of frequency converter

    ModelST310-15GBST310-18.5GBST310-22GB
    Specific Parameters
    Applicable Motor (kw)1518.520
    Input Current (A)35.044.050.0
    Output Current (A)30.039.045.0
    Breaker (A)50.063.063.0
    Contactor (A)10.050.050.0
    Brake UnitStandard Built-in
    Braking Resistor Power2.0KW5.0KW5.0KW
    Resistance/ Ultimate resistance40 (≥25)30(≥16)30(≥16)
    Power Input
    Rated Voltage3 Phase 380V
    Rated Voltage50HZ/60HZ
    Allow Frequency Fluctuation±5%
    Allow voltage fluctuationVoltage imbalance<3%, distortion rate meets the requirements of 1EC61800-2
    Allow voltage fluctuationThe constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V
    Power Output
    Output Voltage3-Phase:0~rated input voltage, error less than ±3%
    Output Frequency0.00~300.00HZ,each unit 0.01HZ
    Overload Capacity150% 60s, 180% 10s, 200% 0.5s

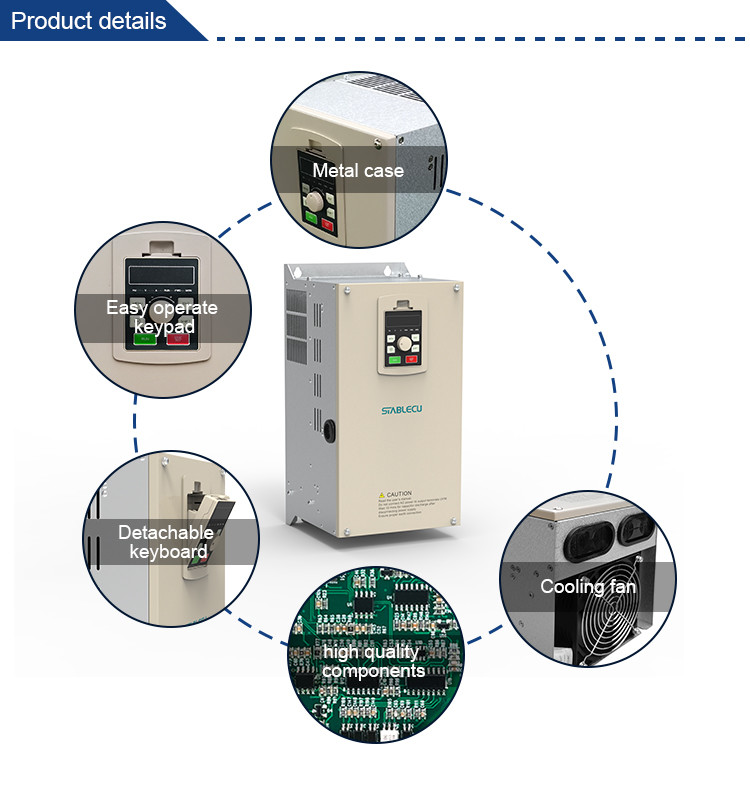

    Details image of frequency converter

    AC Drive 18.5KW Adjustable Frequency Converter For Three Phase Pump

    AC Drive 18.5KW Adjustable Frequency Converter For Three Phase Pump

    Application of frequency converter

    Inverters are widely used in pharmaceutical machinery, packaging machinery, textile machinery,
    food machinery, auto parts production lines, precision printing, welding, automated production lines, etc.

    AC Drive 18.5KW Adjustable Frequency Converter For Three Phase Pump
