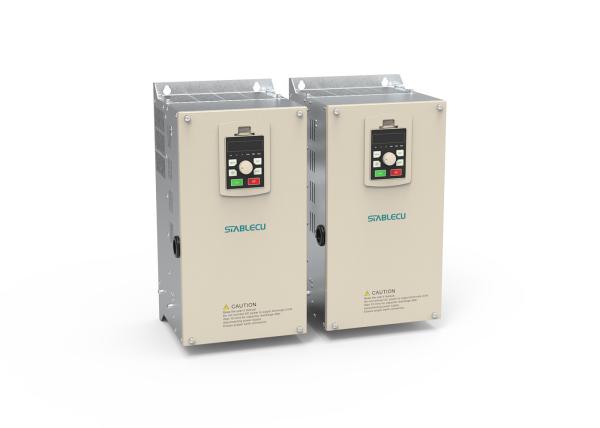

18.5KW Frequency Converter Three Phase AC Motor Adjustable Speed
Drives
Description of variable frequency drive
ST310 inverter series is a powerful high-performance current vector
inverter, which can realize the
control of the asynchronous motor, V/F control mode, one machine
with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives
for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and
food.
Product Testing of variable frequency drive
Semi-finished product testing
After all semi-finished products are processed, the quality
department will carry out a comprehensive
appearance test and electrification test. After the test is
completed, professionals will apply three layers
of three-proof paint, and some products will undergo
electrification aging test.
All test data are archived to ensure the consistency of product
testing. Abnormal test data can be recalled
and investigated later.
The finished product testing
At least 12 hours after the production is completed, the aging
temperature is 55 degrees to ensure the reliability
of the internal electronic components.
After the aging is completed, load tests such as loading, impact,
rapid acceleration, and deceleration are carried out
with the excitation motor, and the input and output ports of the
product are tested to ensure the consistency of product
performance and various functions
Technical Parameters of variable frequency drive
| Power input | Rated voltage | 3 phase 380 v |
| Rated frequency | 50Hz/60Hz |
| Allowable voltage fluctuation | The constant voltage fluctuation is ±10%, and the short fluctuation
is -15% ~ +10%, that is, 323V ~ 528V |
| The voltage imbalance rate is less than 3%, and the distortion rate
meets the requirements of IEC61800-2 |
| Allowable frequency fluctuation | ±5% |
| Rated input current | See section 2.4 |
| Power output | Standard motor | See section 2.4 |
| Rated current | See section 2.4 |
| Output voltage | 3 phase:0 ~ rated input voltage, error less than ±3% |
| Output frequency | 0.00～300.00Hz,each unit 0.01Hz |
| Overload capacity | 150% 1min, 180% 10s, 200% 0.5s |
Control feature | Control mode | Simple vector control |
| Speed range | 1:100 |
| Speed control accuracy | ±0.5% |
| Start torque | 0.5Hz:180% |
The basic performance of the product
| Start frequency | 0.00～600.00Hz |
| Acceleration and deceleration time | 0.00～60000s |
| Carrier frequency | 0.7kHz～16kHz |
| Frequency setting mode | Digital setting+UP/DOWN
Simulation setting
Communication setting
Pulse setting
Primary and auxiliary operations |
| start mode | Start from start frequency
DC injection start
Speed tracking start |
| Stop mode | Slowing stop
Free stop
Deceleration + DC braking stop |
| Energy consumption braking capacity | Built-in braking units of 22KW and below can be selected from 30 to
110KW braking units
Braking unit action voltage: 650V ~ 750V |
| DC breaking capacity | Start frequency of DC braking: 0.00Hz～50.00Hz
DC braking current: 0%～100%
DC braking time: 0.00s～10.00s |
| features | Parameters copy, parameters backup, common DC bus, Flexible
function code to show recessive, All kinds of primary and auxiliary
given and switching, Reliable speed search, A variety of
acceleration and deceleration curve selection, Automatic correction
of analog quantity, Slug control function, Up to 16 speeds can be
supported (two speeds support flexible frequency setting mode),
Fixed length control function, The count function, Three sets of
breakdown records, Over-excitation braking function, Over-voltage
stall, Under-voltage stall, Power down restart function, Jump
frequency function, Frequency binding function, Four stages of
acceleration and deceleration time free switching function, Motor
temperature protection function, Flexible fan control function,
Process PID control function, Simple PLC control function, Flexible
multifunctional key setting function, Droop control function,
Parameter identification of asynchronous machine, Weak magnetic
control function |
| Using environment | Using place | Indoor, out of direct sunlight. No dust, corrosive gas, flammable
gas, oil mist, water vapor, dripping or salt, etc |
| The altitude | 0～2000m
Over 1000 meters, the rated output current is reduced by 1% for
every 100 meters rise |
| Temperature | Between -10℃~40℃ and 40℃~50℃, the rated output current decreases by
1% for every 1℃ increase |
| Humidity | 5～95%, No condensation is allowed |
| Vibration | Less than 5.9 m/s2(0.6g) |
| Storage temperature | -40℃～+70℃ |
| Protection grade | IP20 |
Detail images of variable frequency drive
