15KW Frequency Inverter 220V 380V 480V VFD For 3 Phase Motor
Instruction of frequency inverter
Inverters of the latest generation are used widely in various
fields from simple speed control to complex
process automation. Raw materials are supplied by first-class
suppliers, guaranteeing cost efficiency,
reliability, and absolute quality. Three-phase asynchronous
induction motors are controlled and driven
by frequency converters. A wide range of features, such as superior
static and dynamic performance,
strong overload capacity, and precision torque, speed, and position
control, enable the inverter to deliver
energy-saving capabilities as well as higher productivity and
quality in industrial and professional applications.
General-purpose inverters are widely used in a wide range of
applications, from simplest speed control to
most complex process automation.
Structure/Software/hardware design of frequency inverter
A number of advantages can be gained from structural design:
1. An independent heat dissipation air duct
2. A 4-layer precision PCB board was used, together with a new
generation of IGBT modules, and mostly
IC integrated electronics were used
3. This new generation of inverters has a smaller volume, and is
lighter in weight
A few advantages of software design:
1. DSP chip selected is the latest version from TI
2. Utilized independent intellectual property rights-protected
control software
3. Stable control of voltage and current using wave-by-wave current
limiting
4. Current, voltage, and excitation current control algorithms are
designed using a brand new algorithm
5. Record four fault parameters
6. Design for wide voltage ranges
Advantages of hardware design:
1. A knob with an encoder has been adopted on the panel
2. In terms of design, the operation panel incorporates the latest
concepts
3. Ports used for network communications
4. Modbus protocol supported on port 485 with RTU mode
5. There is a temperature control on the heat dissipation fan
6. Fan partitions are removable and can be pulled directly out
7. Make sure you choose a cooling fan that will last a long time
and can deliver large amounts of air
8. There is a pull-out partition in the wiring terminal
9. Drawings of the installation size are located on the bottom of
low-power machines

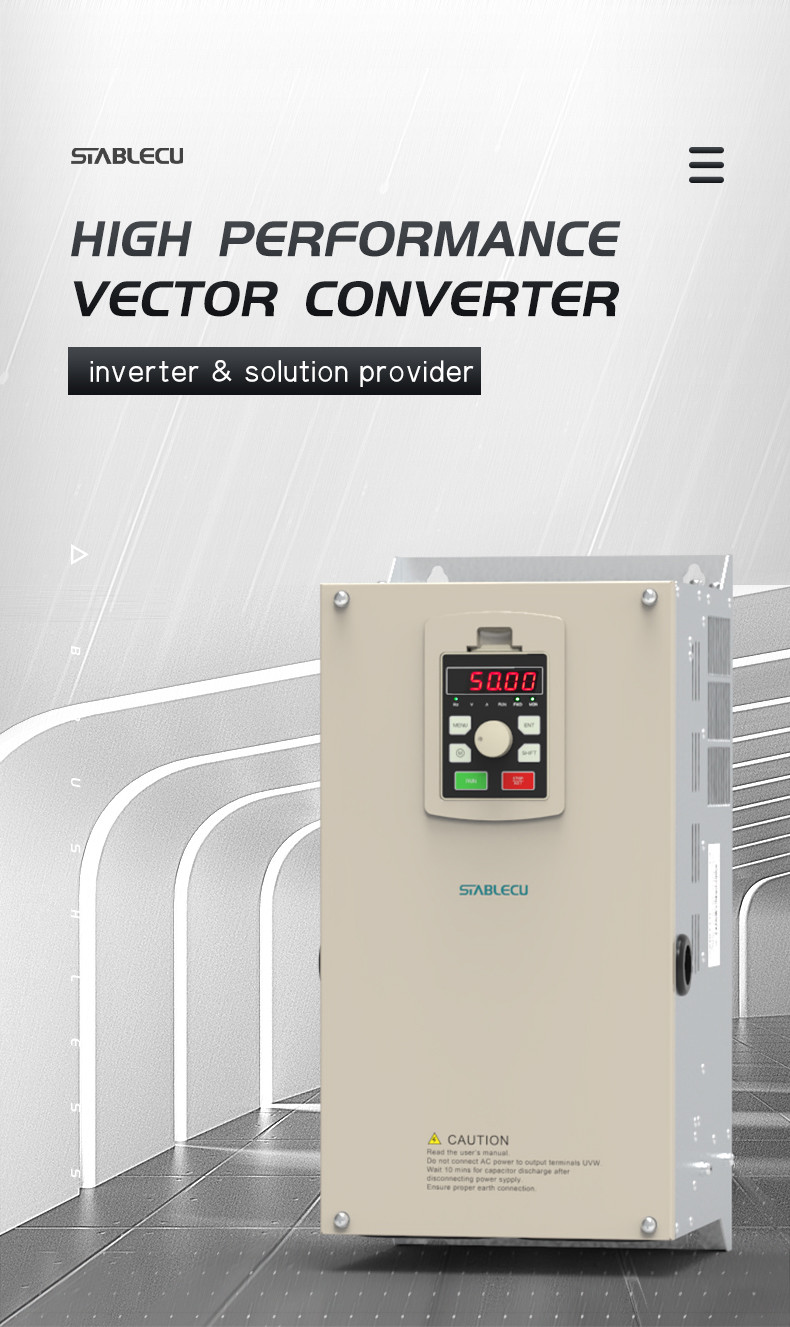

Detailed images of frequency inverter
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009,
sell to Domestic Market(100.00%).
There are total about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final
Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And
Stepper Motor, Frequency Converter,
Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements.
Please send us an inquiry, your inquiry
will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express
Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card,
PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
